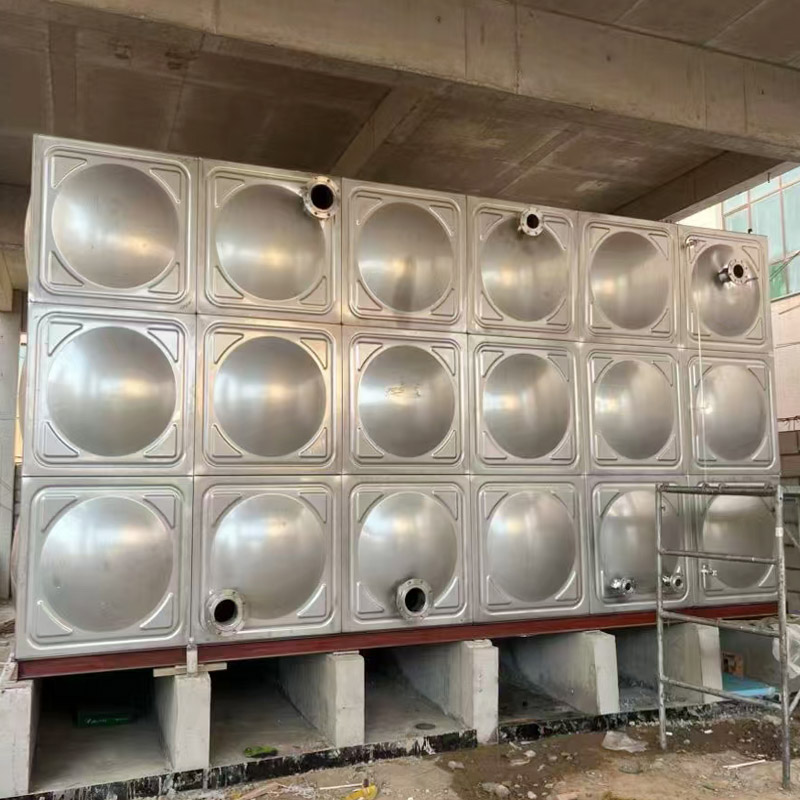

Stainless Steel Screw Water Tank
Stainless steel screw water tank:
Stainless steel screw water tank body material: 304 stainless steel universal type, corrosion-resistant, suitable for drinking Use water. 316 stainless steel material has higher corrosion resistance and is suitable for coastal or chemical environments. Paired with EPDM rubber gasket to enhance sealing performance. The body of the stainless steel screw water tank is made of stainless steel plates (thickness 1.0-2.0mm) spliced together by screws, making it easy to transport and install on site. Pre punched edges of each board, with recommended screw spacing of 15-20 cm to ensure even force distribution. Strengthening rib design: stainless steel angle steel or compression rib structures are added to the side and bottom of the box to improve the pressure bearing capacity, especially suitable for large water tanks。
Stainless steel combination water tank assembly box:
Assemble the side panel, bottom panel, and top panel in order, and tighten the screws from the inside out (it is recommended to use a torque wrench), Avoid deformation caused by being too tight. Apply food grade silicone sealant at the seams. Installation of accessories for stainless steel combination water tank: inlet, outlet, overflow pipe, manhole
cover (to be fixed with stainless steel flanges and screws). Precautions for Leak Prevention Testing: After assembly, fill with water for 24 hours and check for any leaks at the joints. Corrosion prevention: Avoid direct contact with carbon steel
materials to prevent galvanic corrosion. Maintenance: Regularly clean the inner wall (1-2 times a year) and check if the screws are loose.
1.If the foundation of the water tank design is too low, it will affect the operation of workers and the installation of sewage pipes, especially for the basement water tank or civil air defense water tank. Modifications should be proposed in a timely manner during the drawing review.
2. When pouring concrete foundation, the height of channel steel and veneer should be reserved, and the top surface must be level and consistent.
3. The position of the water tank in the water tank room and the surrounding space should be able to meet the minimum operation requirements of construction and maintenance personnel Create a space.
4. The height of the water supply pipe at the outlet of the water tank should meet the pressure requirements for domestic and production water supply at the most unfavorable point on the top floor. This issue should be noted during the drawing review.
5. Multiple water tanks with the same function should be arranged in the water tank room, and the installation height should be consistent.
6. Be careful when handling water tank materials, place them flat and stable, handle them gently, keep the surface clean, and avoid contamination.

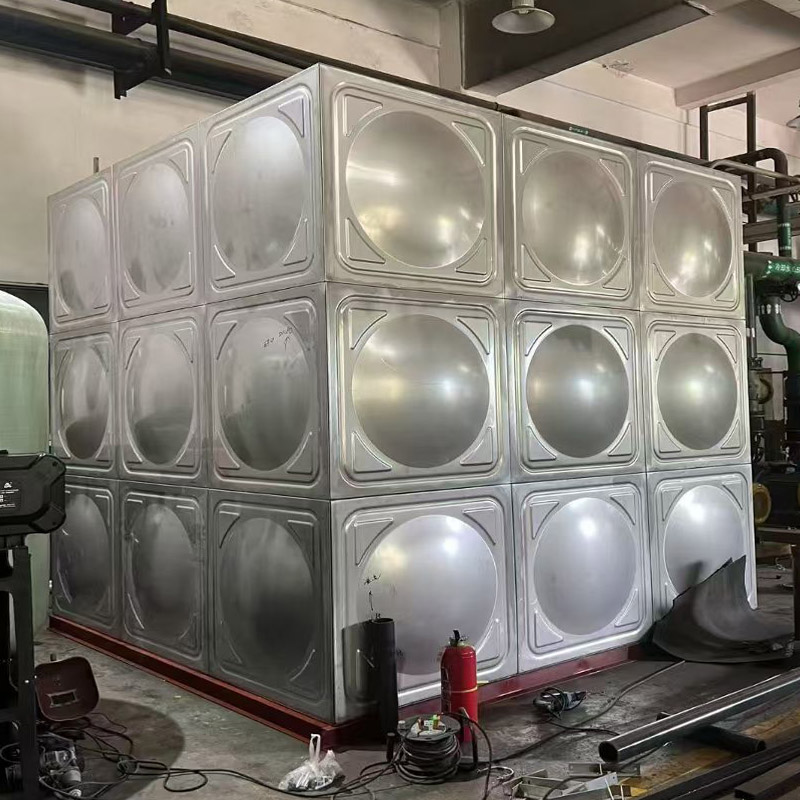

Overview of Stainless Steel Combination Water Tank Products:
The stainless steel combination water tank is made of modular 304/316L stainless steel plate stamping and assembled by bolt connection. It has the characteristics of high strength, corrosion resistance, long service life, and flexible installation, and is suitable for fire protection, domestic water, industrial water storage and other scenarios.
